Automatic copper recycling machine
Home > Product > Automatic copper recycling machine

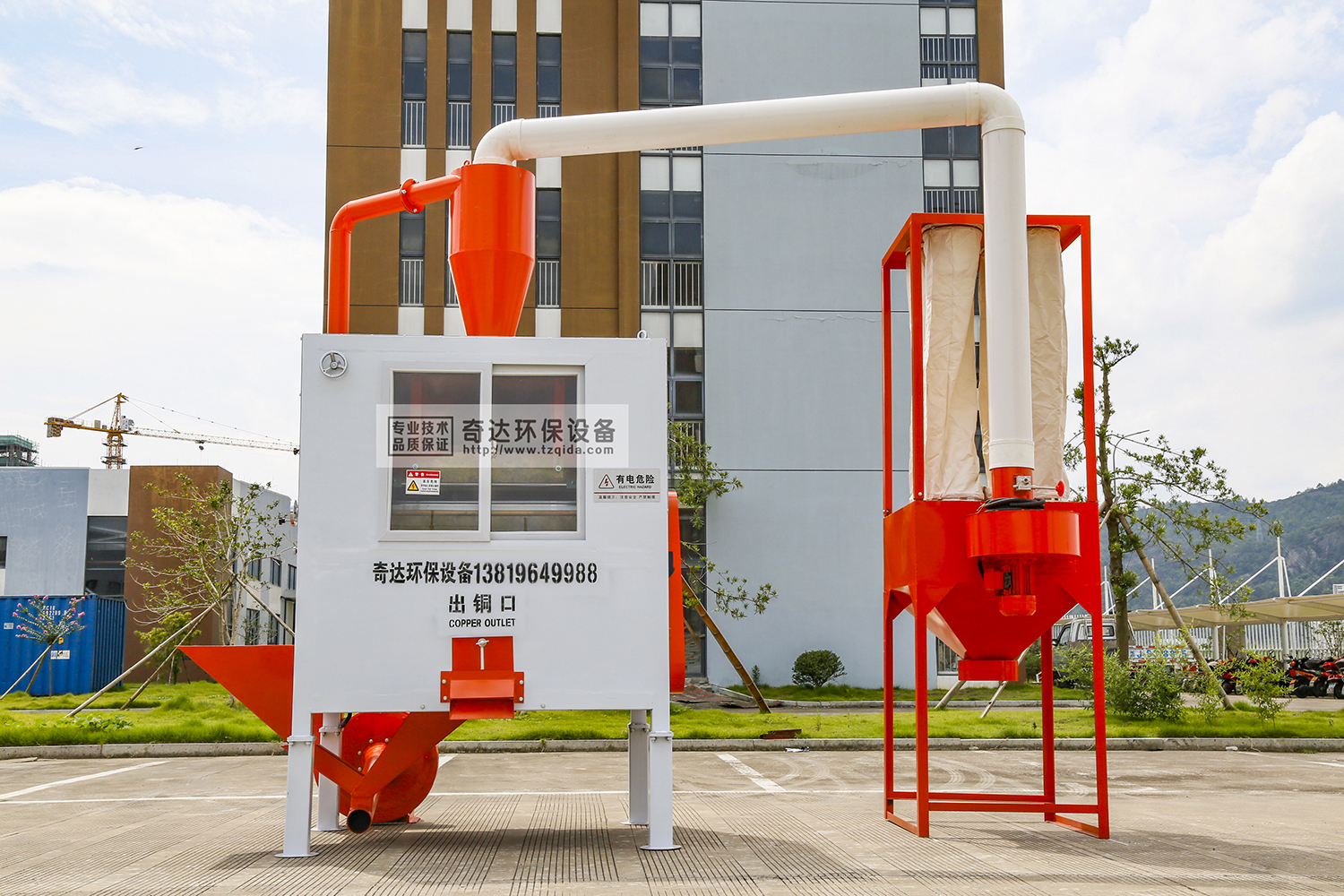

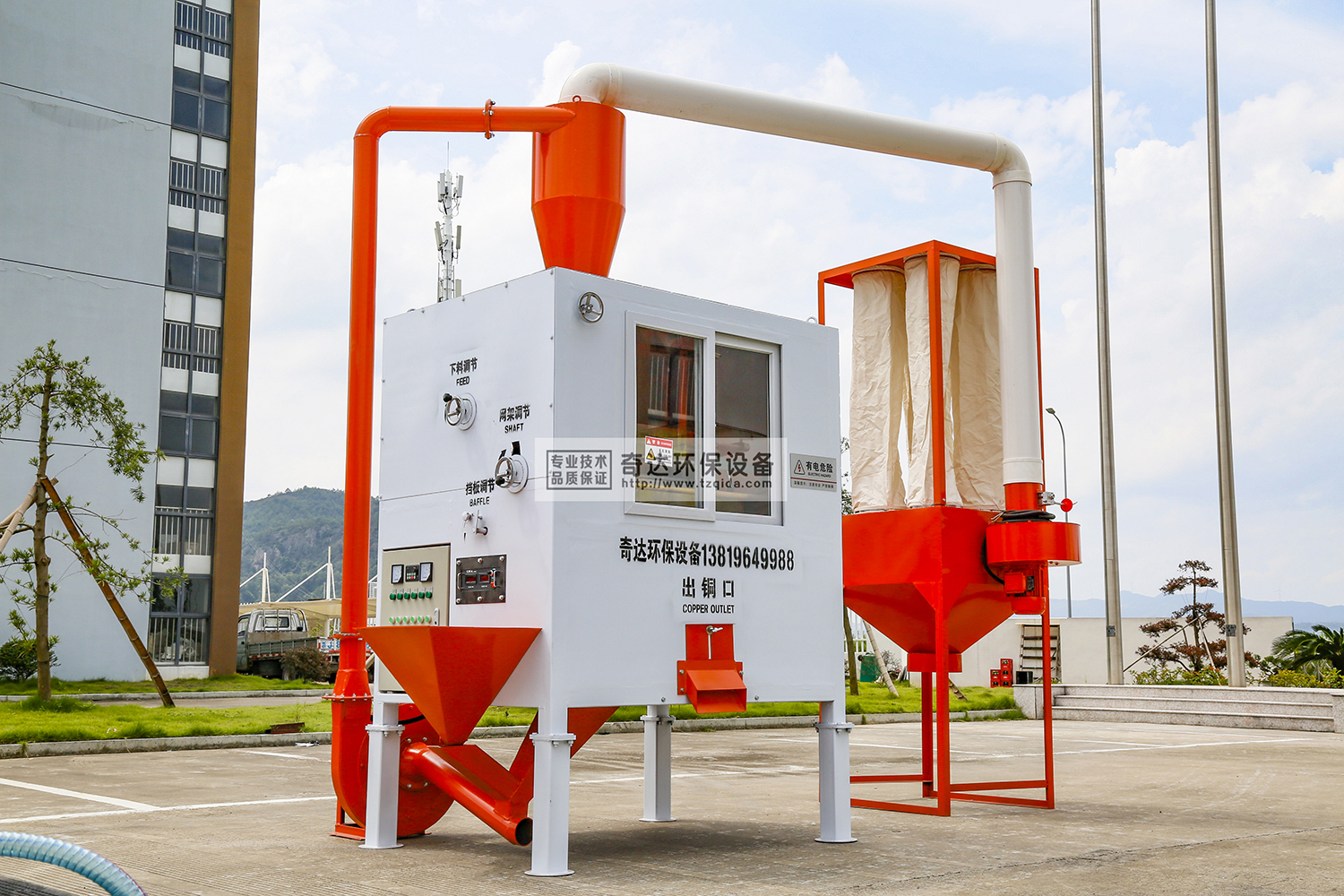

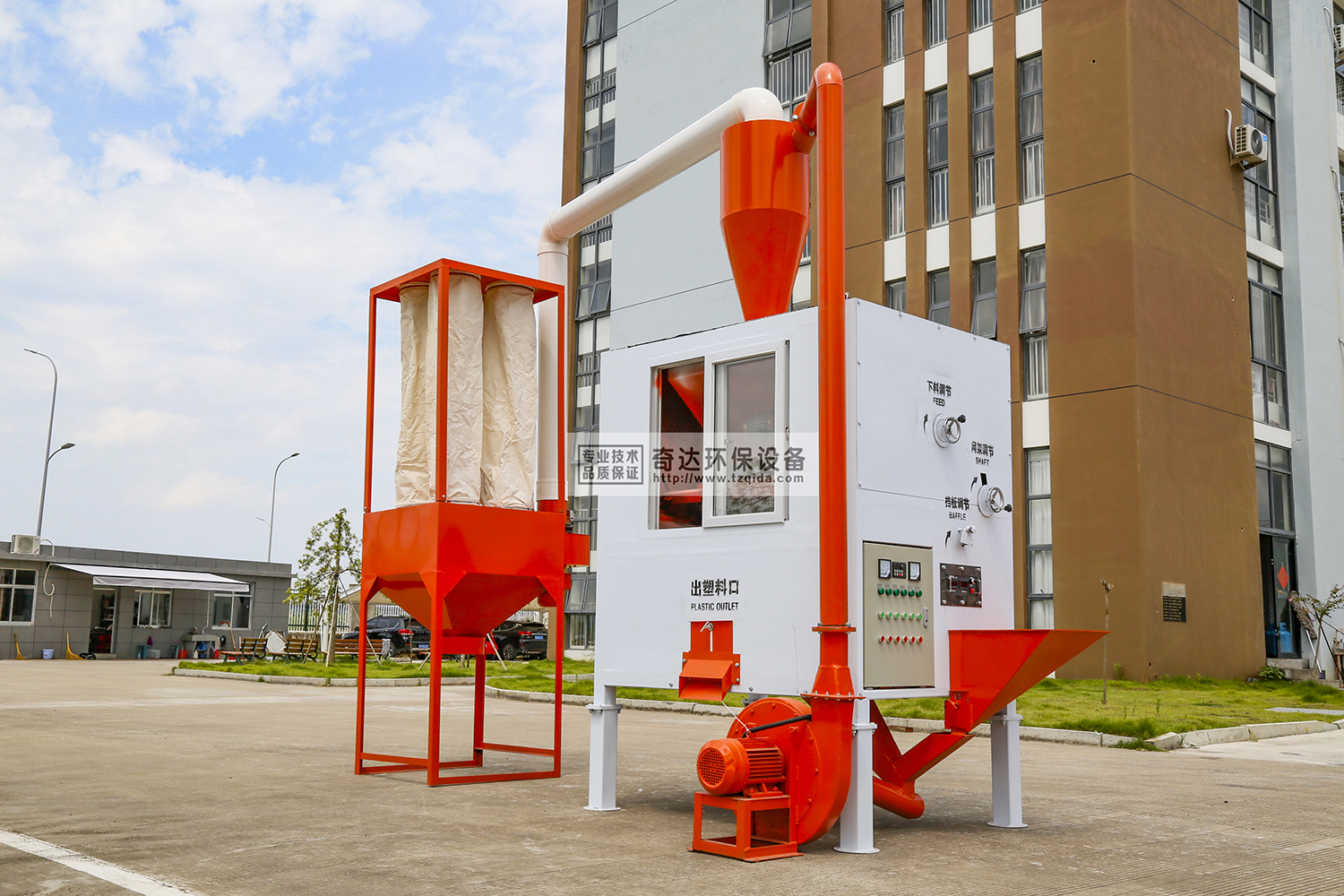

QD-1000Electrostatic Separator
Hits : 4605
Description





The electrostatic separator, through years of practice and theoretical analysis, has obtained a good sorting effect. The impurities after sorting can be less than 1%, that is, the sorting effect can reach up to 99%, and it beints to complete physical separation. The properties of various materials remain unchanged and do not affect recycling.


The device firstly causes the corona discharge generator to ionize the surrounding air layer, and then uses the difference in permittivity to separate metal and plastic (conductor and non-conductor) from the crushed materials.


The advantage of the new device is that there is no need to use chemicals to dissolve waste, so it will not pollute the environment. It can separate more than 99% of gold, copper, aluminum and other metals from plastics in waste.


The device can be used for the separation of aluminum-plastic panels, waste circuit boards, medical boards, waste wires and cables, aluminum and sand, conductors and non-conductors.





主机技术参数(TXECHNICAL PARAMETER)
加工对象:
Processing object
金属和非金属混合料
主机器尺寸:长X宽X高
Overall dimension(LxWxH)
470*430*375cm
机器重量:
Machine weight1157
1100kg
电机电压:
Motor voltage
380V/220V
产量(每小时):
Qutput/hour
100kg-150kg
电机功率:
Motor Power
8KW
